UF80A Series

UF80A Series
UF80A Series
Axial Fan

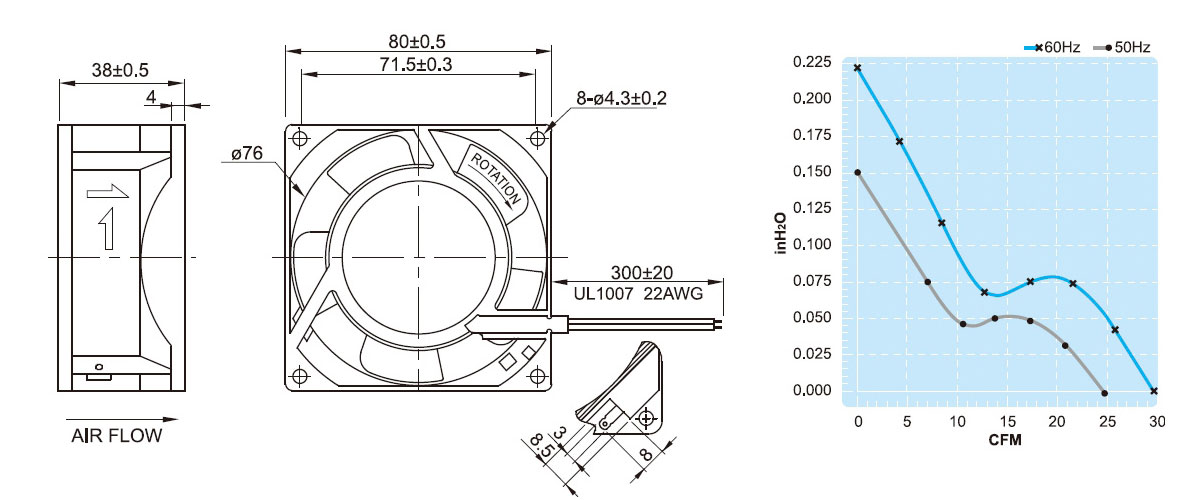

UF80A Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic PBT PC,nylon or metal
Bearing System: Ball bearing or sleeve bearing
Motor: Shaded pole or capacitor start-run
Connection: Lead wire or termnal type
Protection: Impedance-Protected or Thermally-Protected
Dielectric withstand voltage: Above 10MΩ, DC500V
Life Expectancy: Ball bearing:Over 40,000 hr.(at 40°C)
Sleeve bearing:Over 15,000 hr.(at 40°C)
Safety Approval: CUL, CE, TUV, either UL or ETL
Description of Model No.
UF 12 A (R) 11 B T H N
1 2 3 4 5 6 7 8 9


Get Latest Price
UF80A11-H UF80A23-H
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 12/9 W 14/12 W
Rated Current 0.14/0.12 A 0.07/0.06 A
Locked Current 0.15/0.13 A 0.08/0.07 A
Speed 2500/3000 RPM 2500/3000 RPM
Maximum Air Flow 0.68/0.83 m3/min. 0.68/0.83 m3/min.
Maximum Air Flow 24/30 CFM 24/30 CFM
Maximum Pressure 3.6/5.3 mmH2O 3.6/5.3 mmH2O
Maximum Pressure 0.14/0.21 InchH2O 0.14/0.21 InchH2O Noise 32/36 dB Weights 0.28 kg
Noise 32/36 dB 32/36 dB
Weights 0.28 kg 0.28 kg
SAFETY APPROVAL
