UF133(91)APA Series

UF133(91)APA Series
UF133(91)APA Series

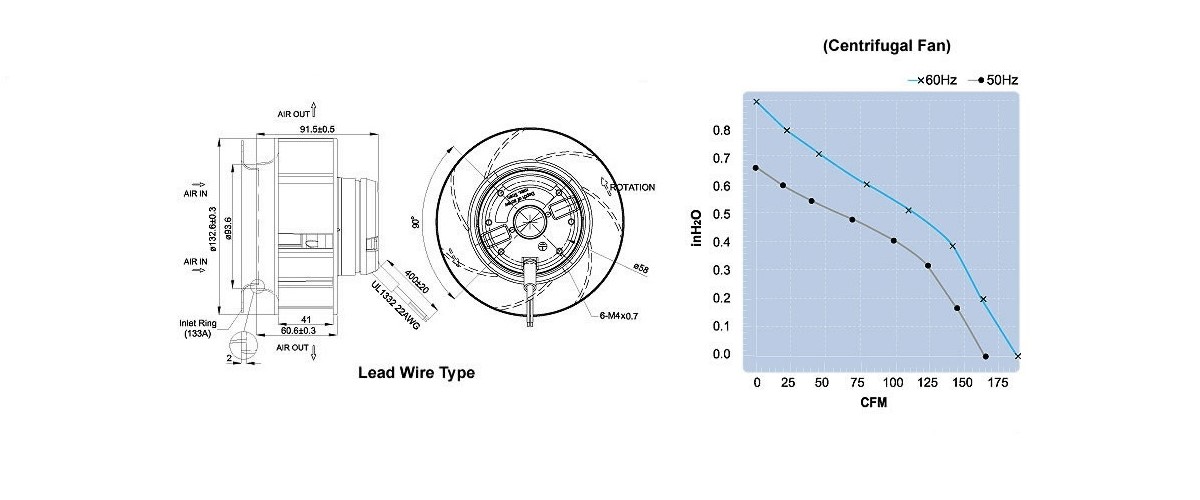

Centrifugal Fan

UF133(91)APA Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Shaded pole or capacitor start-run
Protection: Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: Above 100MΩ, DC500V.
Dielectric withstand voltage AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: CUL, CE, TUV, either UL or ETL.
Description of Model No.
UF 190 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10





Get Latest Price
UF133(91)APA11H1S2A UF133(91)APA23H1S2A
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 42/41 W 40/39 W
Rated Current 0.5/0.43 A 0.24/0.21 A
Locked Current 0.83/0.72 A 0.39/0.34 A
Speed 2780/3200 RPM 2780/3200 RPM
Maximum Air Flow 4.66/5.33 m3/min. 4.66/5.33 m3/min.
Maximum Air Flow 165/188 CFM 165/188 CFM
Maximum Pressure 16.6/22.4 mmH2O 16.6/22.4 mmH2O
Maximum Pressure 0.65/0.88 InchH2O 0.65/0.88 InchH2O
Noise 50/60 dB 50/60 dB
Weights 0.9 kg 0.9 kg
SAFETY APPROVAL
