Axial Fan

UF15P Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic PBT PC,nylon or metal
Bearing System: Ball bearing or sleeve bearing
Motor: Shaded pole or capacitor start-run
Connection: Lead wire or termnal type
Protection: Impedance-Protected or Thermally-Protected
Dielectric withstand voltage: Above 10MΩ, DC500V
Life Expectancy: Ball bearing:Over 40,000 hr.(at 40°C)
Sleeve bearing:Over 15,000 hr.(at 40°C)
Safety Approval: CUL, CE, TUV, either UL or ETL
Description of Model No.
UF 12 A (R) 11 B T H N
1 2 3 4 5 6 7 8 9


Get Latest Price

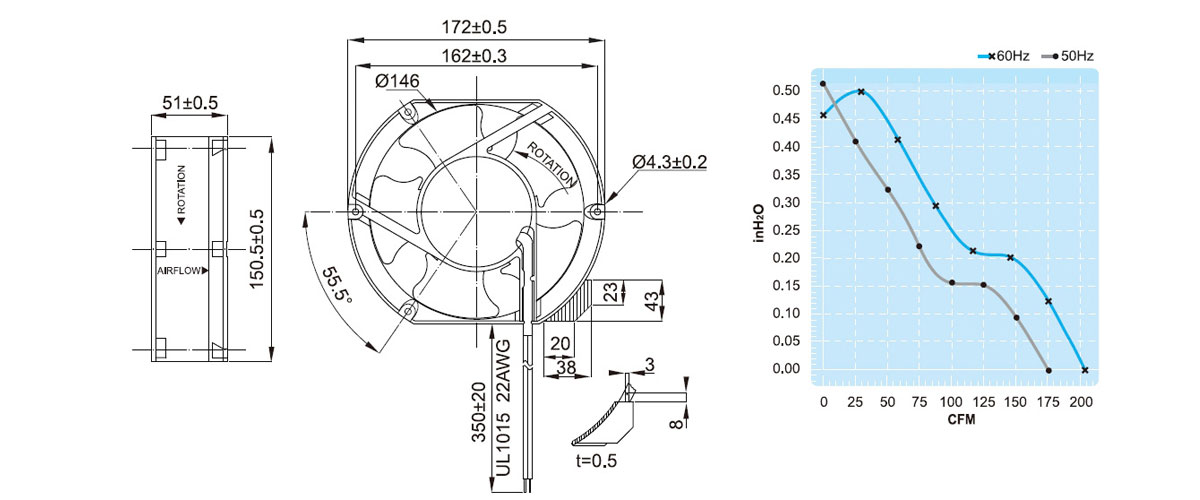

UF15P11-H UF15P23-H
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 32/28 W 35/30 W
Rated Current 0.43/0.36 A 0.23/0.18 A
Locked Current 0.51/0.45 A 0.29/0.25 A
Speed 2750/3100 RPM 2750/3100 RPM
Maximum Air Flow 4.8/5.5 m3/min. 4.8/5.5 m3/min.
Maximum Air Flow 170/195 CFM 170/195 CFM
Maximum Pressure 10.5/9.5 mmH2O 10.5/9.5 mmH2O
Maximum Pressure 0.42/0.38 InchH2O 0.42/0.38 InchH2O
Noise 50/55 dB 50/55 dB
Weights 0.9 kg 0.9 kg
SAFETY APPROVAL
