UF250APA-F Series

UF250APA-F Series
UF250APA-F Series

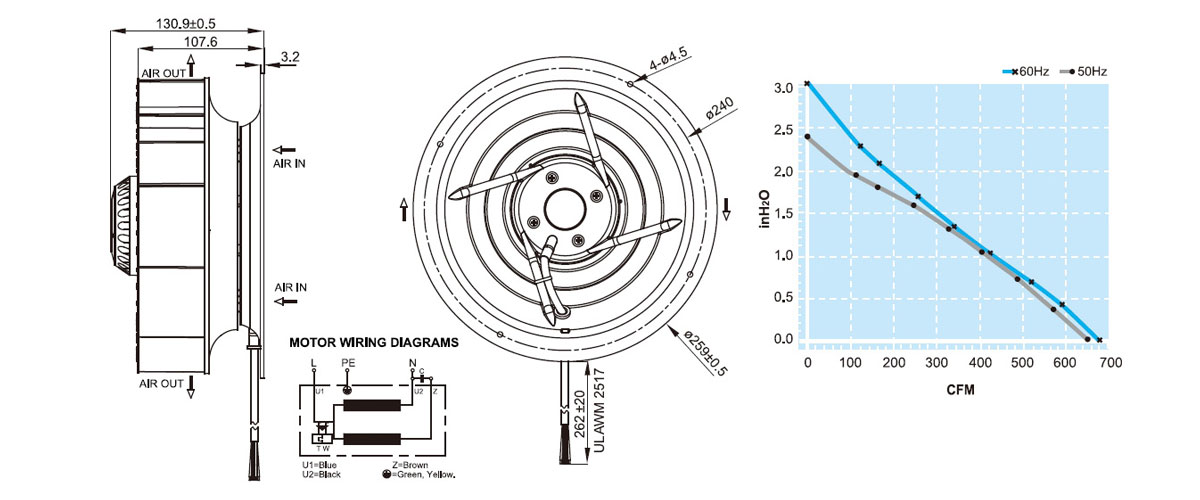

Centrifugal Fan

UF250APA-F Series

Frame/Housing: Aluminum die-casting
Impeller: Plastic or steel
Bearing System: Ball bearing
Motor: Shaded pole or capacitor start-run
Protection: Impedance-Protected or Thermally-Protected or Electronically-Protected
Insulation Resistance: Above 100MΩ, DC500V.
Dielectric withstand voltage AC 1,500V (50/60Hz) one minute
Life Expectancy: Ball bearing: Over 40,000 hr. (at 40℃)
Safety Approval: CUL, CE, TUV, either UL or ETL.
Description of Model No.
UF 190 A P A 11 H1 C 2 A
1 2 3 4 5 6 7 8 9 10





Get Latest Price
UF250APA11H1C2F UF250APA23H1C2F
Rated Voltage 115 V 230 V
Frequency 50/60 Hz 50/60 Hz
Input Power 170/240 W 170/240 W
Rated Current 1.5/2.1 A 0.77/1 A
Locked Current 3.1/3 A 1.57/1.52 A
Speed 2600/2700 RPM 2600/2700 RPM
Maximum Air Flow 18.5/19.3 m3/min. 18.5/19.3 m3/min.
Maximum Air Flow 653/681 CFM 653/681 CFM
Maximum Pressure 61/78 mmH2O 61/78 mmH2O
Maximum Pressure 2.4/3.1 InchH2O 2.4/3.1 InchH2O
Noise 71/72 dB 71/72 dB
Weights 3.3 kg 3.3 kg
SAFETY APPROVAL
