EC FAN Application: The cooling solution for disinfection robot- Fulltech Electric
By the beginning of 2020, the new coronavirus has rapidly spread to many countries around the world, and the epidemic has continued to heat up over time. Enterprises and major medical institutions, whether the working environment for a long time is a sterile and safe place, this issue has prompted some. More attention has been paid to disinfection robots.
The principle of the disinfection robot is to use the robot as a carrier, inhale the external air, and use the high-power output UVGI ultraviolet lamp installed inside to effectively eliminate pathogenic bacteria. The disinfection robot can also accurately and automatically according to the set route. The indoor environment is disinfected and epidemic prevention, and how to effectively and quickly spread to the entire indoor space, without dead ends to eliminate pathogenic microorganisms in the air, how to choose a suitable fan to set up the re-exhaust vent at this time is the redesign stage of the robot equipment important part.
Generally, small robot equipment may basically choose a direct current (DC) fan, because the optional size is also smaller, and the energy consumption is relatively smaller than the general alternating current (AC) fan, but if the robot equipment is designed If you want to have a larger air volume, and there is no need to use a transformer to drive the DC fan, you can use the EC fan launched by Fulltech as the first choice, because the EC fan can provide customers with AC power. The current is passed through the internal circuit board Converted to DC power to achieve the same energy-saving effect as DC fans, but also have the stable quality and higher air volume of AC fans.
In addition to selecting a suitable fan for the disinfection robot, sometimes the client also needs special customized services such as adding PWM (rotation speed control) and functions such as RD (low speed alarm) and FG (rotation speed detection) developed by Fulltech. These two functions can help customers use the disinfection robot to control the speed and adjust the air volume in the face of different environments, so as to achieve the appropriate disinfection effect. The speed alarm function can issue an alarm when the fan is abnormally running The detection function means that customers can observe the fan speed from the background by themselves, so as to achieve the effect of real-time abnormal elimination, so as to maintain the long-term stable quality and service life of the machinery and equipment.
Through long-term cooperation cases, the UFT15P launched by Fulltech has found that it is suitable for use in general small and medium-sized equipment, and for disinfection robot equipment, the EC fan can also exert its characteristics, and the energy saving efficiency is higher than that of ordinary AC fans. 70%, Fulltech fans have been manufactured in Taiwan for more than 30 years, high quality requirements, has always been the industry's best choice for the designated brand of fans

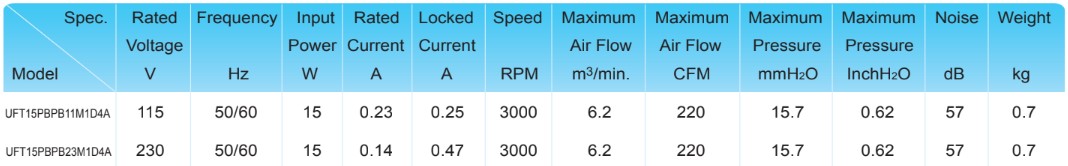

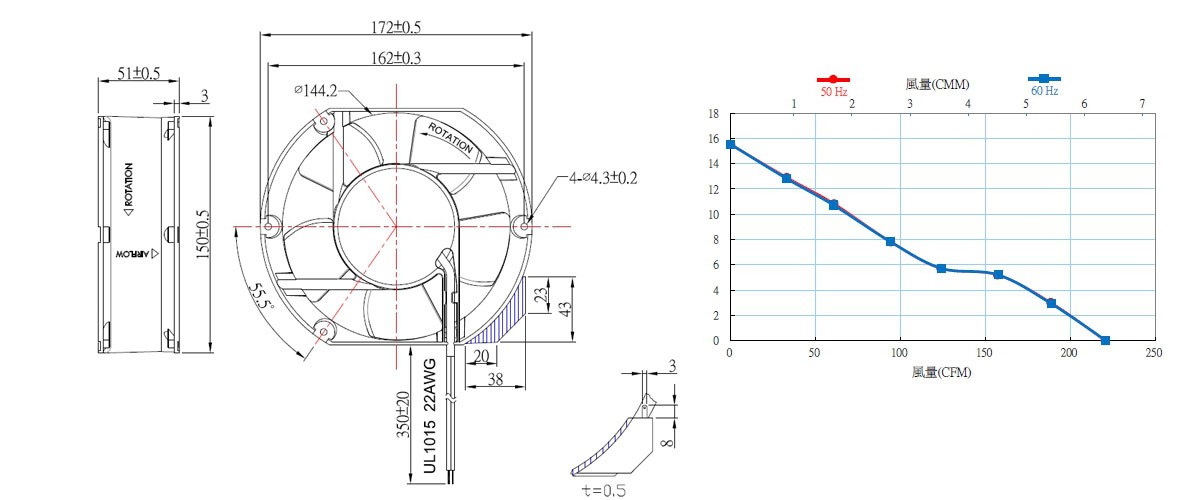

UFT15P specifications & dimensions are as follows:
You can choose the distributors that Fulltech cooperates with to obtain reliable AC/EC cooling fans, or contact us through the Fulltech official website to obtain the AC and EC fans you need.
