Fulltech Electric Machinery - Introducing Our Cross Flow Fans for the Elevator Industry
Fulltech Electric Machinery has been dedicated to producing high-quality axial fans and energy-efficient EC fans for nearly 30 years. We have established strong partnerships across various industries, with the elevator car industry being a significant partner. Our AC cross flow fans have become the top choice in the market.
Product Overview
AC Cross Flow Fans: Essential Components of Elevator Systems
AC cross flow fans are crucial components in elevator systems, primarily functioning to provide efficient ventilation and air circulation within elevator cars, ensuring passenger comfort and safety. These fans are typically installed in the elevator car's ceiling or other suitable locations and can be configured to optimize airflow speed and direction.
High Efficiency and Low Noise Design
Our AC cross flow fans are powered by AC, featuring high rotational speed and large airflow capacity. They can quickly and effectively move air from one location to another. Designed with an emphasis on low noise and high efficiency, these fans ensure quiet and stable operation within elevators, enhancing the overall passenger experience.
Improving Air Quality and Comfort
AC cross flow fans play a vital role in elevator systems, especially in high-rise buildings or enclosed spaces. They effectively help regulate temperature, improve air quality, and significantly enhance passenger comfort. Due to their outstanding reliability and performance, AC cross flow fans are widely used in various elevators and are crucial in ensuring passenger safety and comfort.

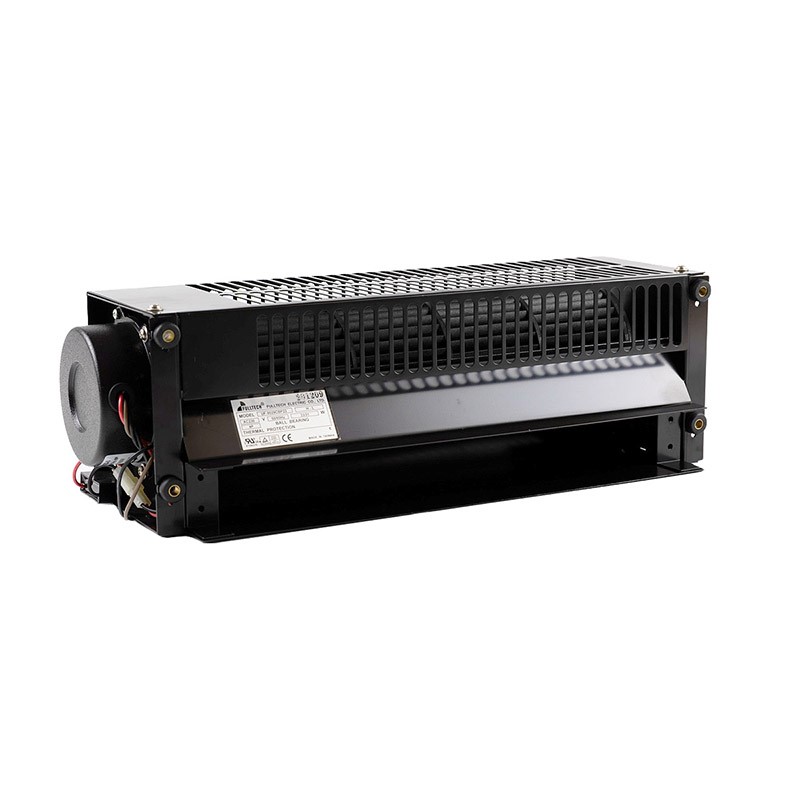

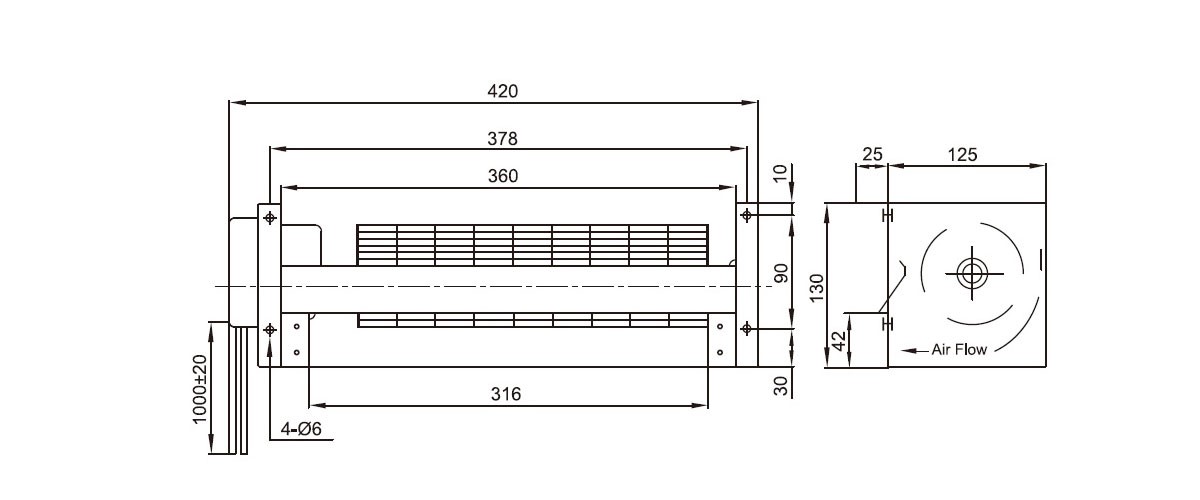

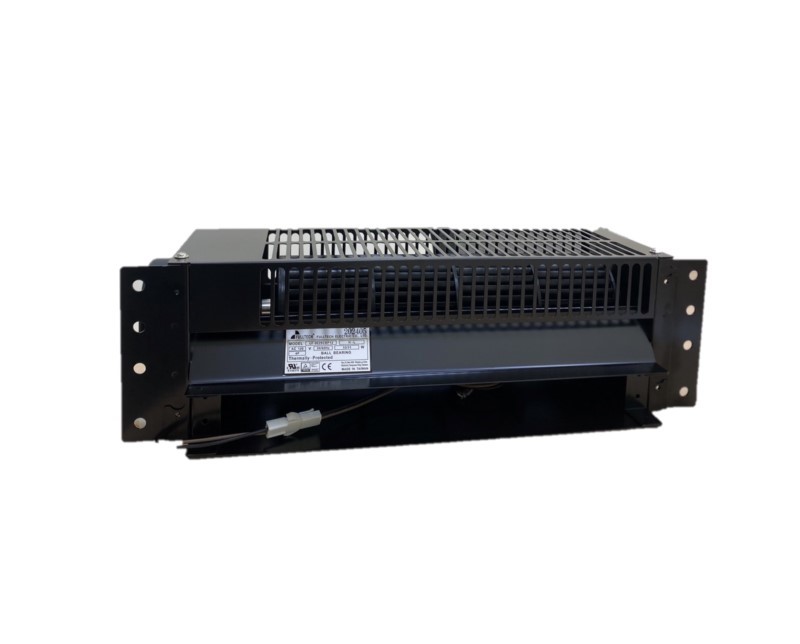

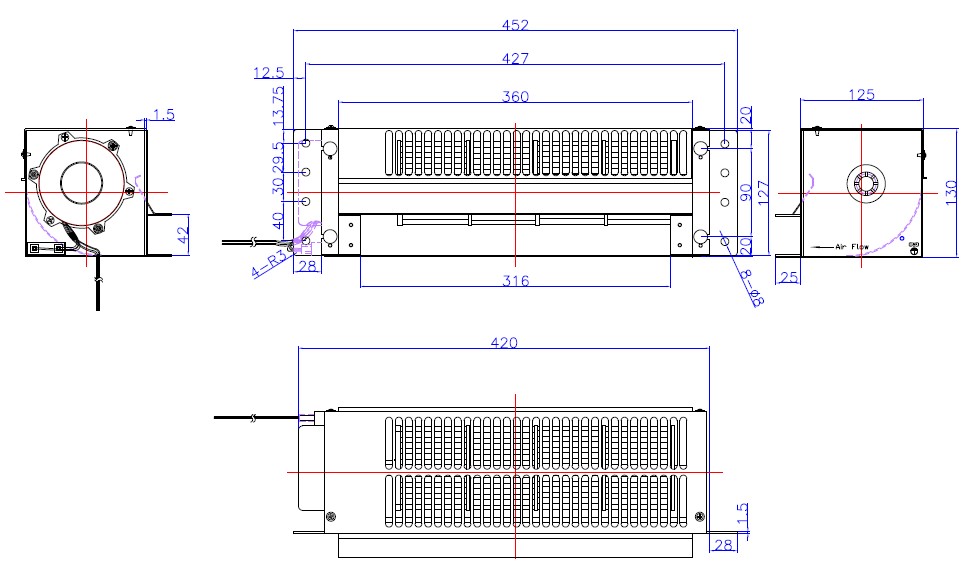

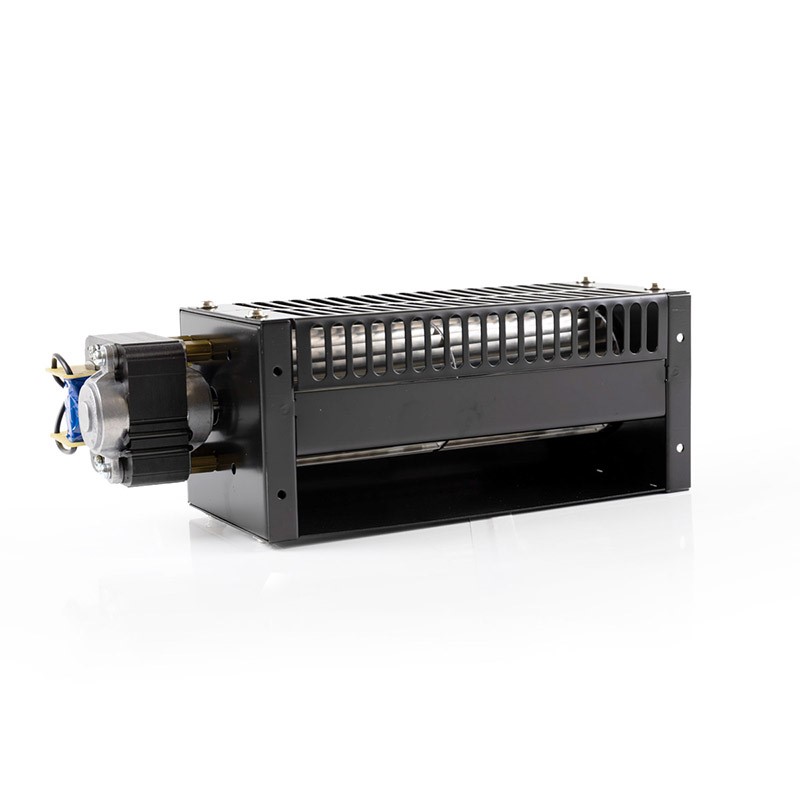

Commonly Used Cross Flow Fan Models in the Elevator Industry
Chung Yo & Mitsubishi Elevators
UF-9029CBP12HL
|
|
|
|
Rated Voltage |
120 V |
|
Frequency |
50/60 Hz |
|
Input Power |
33/31 W |
|
Rated Current |
0.28/0.27 A |
|
Locked Current |
0.4/0.4 A |
|
Speed |
1350/1560 RPM |
|
Maximum Air Flow |
4.5/5 m3/min. |
|
Maximum Air Flow |
159/177 CFM |
|
Maximum Pressure |
2.2/3.3 mmH2O |
|
Maximum Pressure |
0.09/0.13 InchH2O |
|
Noise |
43/46 dB |
|
Weights |
3 kg |
Yungtay Elevators
|
|
UF-9029CBP12HL-Y5 |
|
Rated Voltage |
120 V |
|
Frequency |
50/60 Hz |
|
Input Power |
33/31 W |
|
Rated Current |
0.28/0.27 A |
|
Locked Current |
0.4/0.4 A |
|
Speed |
1350/1560 RPM |
|
Maximum Air Flow |
4.5/5 m3/min. |
|
Maximum Air Flow |
159/177 CFM |
|
Maximum Pressure |
2.2/3.3 mmH2O |
|
Maximum Pressure |
0.09/0.13 InchH2O |
|
Noise |
43/46 dB |
|
Weights |
3 kg |
Hoja Elevators
UF-6017SBA12ML (Medium Speed, Low Noise)
|
|
|
|
Rated Voltage |
120 V |
|
Frequency |
50/60 Hz |
|
Input Power |
27/25 W |
|
Rated Current |
0.30/0.28 A |
|
Locked Current |
0.37/0.30 A |
|
Speed |
2350/2000 RPM |
|
Maximum Air Flow |
2.5/2.0 m3/min |
|
Maximum Air Flow |
88/72 CFM |
|
Maximum Pressure |
3.5/2.8 mmH2O |
|
Maximum Pressure |
0.19/0.24 InchH2O |
|
Noise |
38/38 dB |
|
Weights |
1.6 kg |
Long-standing Industry Collaboration
For over 30 years, Fulltech Electric Machinery has closely collaborated with major elevator manufacturers. Our cross flow fans are the industry’s first choice for routine elevator maintenance and new elevator car installations. Known for their high quality and longevity, our products have secured a prominent position in the industry.
If you have any questions about our cross flow fans, please feel free to contact us. You can also download our complete catalog to learn more about the fan specifications.
Thank you for choosing Fulltech Electric Machinery. We look forward to creating a bright future together!
