In recent years, the issue of the reduction of carbon emissions government has called for has made the electric vehicle market growing vigorously which also resulting in more and more attentions paid to the supply and demand of electricity.
Therefore, how to utilize the alternate sources properly and store it with more effectiveness in the era of global energy transition have been put more emphasis on along with the relevant issue of storage cabinet.
When the storage system is in operation , electric energy must be converted at high power, which will generate heat inevitably,so how to configure the fans to dispose the heat, and also to maintain stable energy storage is a key factor.

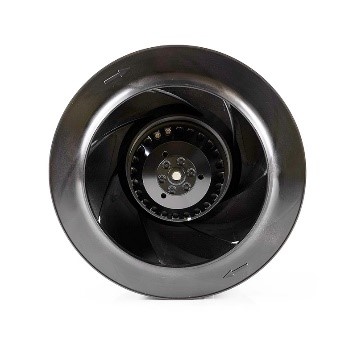

In the cases Fulltech Electric has been participated during those years, our clients design centrifugal fan with air inlet and outlet at 90 degrees to dissipate large amount of heat energy, then, using the axial flow fan to steer the air flow to discharge the heat energy from the energy storage cabinet, to stabilize the internal energy convert output, also to prevent the temperature inside the cabinet from rising too much.
The specs of model (UF-225(99)APA) series applied in the above-mentioned collaboration cases are stated as below
Size:Ø225*99mm
|
UF225(99)APA11H1C2A |
UF225(99)APA23H1C2A |
|
|
|
Rated Voltage |
115 V |
230 V |
|
|
Frequency |
50/60 Hz |
50/60 Hz |
|
|
Input Power |
128/160 W |
126/157 W |
|
|
Rated Current |
1.16/1.41 A |
0.57/0.7 A |
|
|
Locked Current |
2.22/2.3 A |
1.14/1.15 A |
|
|
Speed |
2650/2950 RPM |
2650/2950 RPM |
|
|
Maximum Air Flow |
20/22 m3/min. |
20/22 m3/min. |
|
|
Maximum Air Flow |
700/770 CFM |
700/770 CFM |
|
|
Maximum Pressure |
51/66 mmH2O |
51/66 mmH2O |
|
|
Maximum Pressure |
2/2.6 InchH2O |
2/2.6 InchH2O |
|
|
Noise |
69/71 dB |
69/71 dB |
|
|
Weights |
2.3 kg |
2.3 kg |

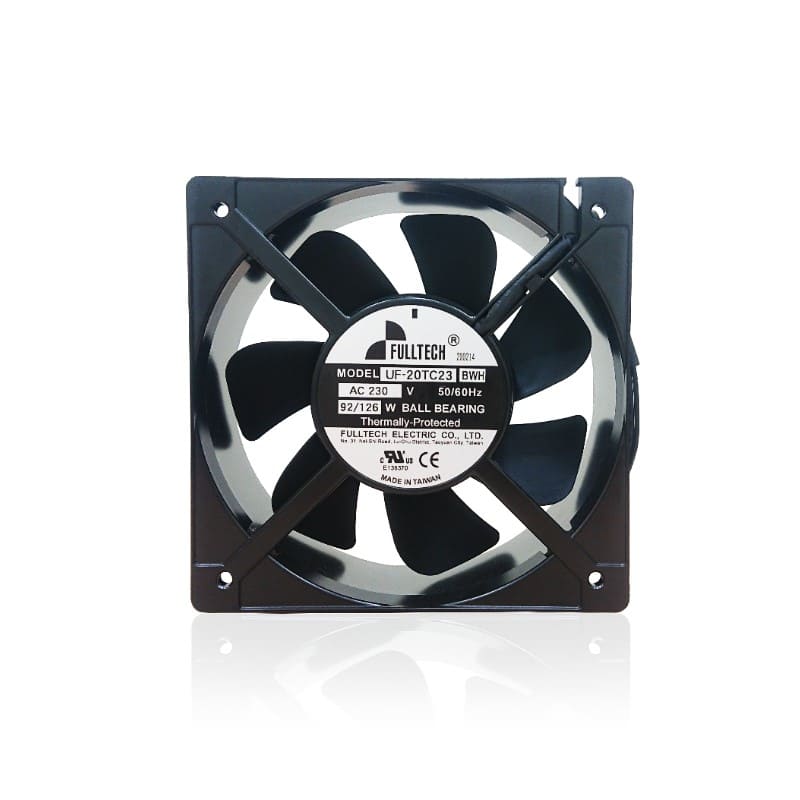

The specs of model (UF-20TC) series as follows
Size:205*205*72mm
|

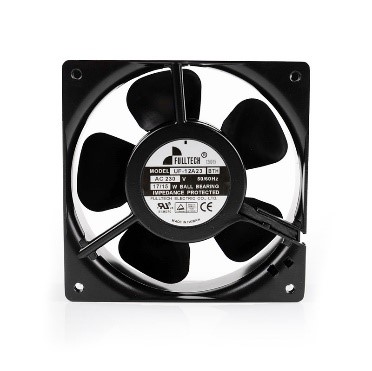

The specs of model (UF-12A) series as follows
Size:120*120*38mm
|
|
UF12A11-H |
UF12A23-H |
|
|
|
Rated Voltage |
115 V |
230 V |
||
|
Frequency |
50/60 Hz |
50/60 Hz |
||
|
Input Power |
14/12 W |
17/15 W |
||
|
Rated Current |
0.20/0.16 A |
0.14/0.11 A |
||
|
Locked Current |
0.27/0.23 A |
0.17/0.15 A |
||
|
Speed |
2700/3100 RPM |
2700/3100 RPM |
||
|
Maximum Air Flow |
2.6/3.0 m3/min. |
2.6/3.0 m3/min. |
||
|
Maximum Air Flow |
92/106 CFM |
92/106 CFM |
||
|
Maximum Pressure |
8.0/8.0 mmH2O |
8.0/8.0 mmH2O |
||
|
Maximum Pressure |
0.32/0.32 InchH2O |
0.32/0.32 InchH2O |
||
|
Noise |
42/46 dB |
42/46 dB |
||
|
Weights |
0.53 kg |
0.53 kg |
|
|
In the collaboration cases of energy storage system, Fulltech also provides customized service to meet the customers’ specific demands, such us to design EC Fan to meet IP68 specification for waterproof and dustproof, and also acquired the international ATEX explosion-proof certification as well. It allows customers to use EC fan in an outdoor environment, without any possible risk of fire to damage the equipment and cause an internal shutdown. And it allows EC fan to operate in a rainy or dusty environment for a long time without concern.
The model applied in the above-mentioned collaboration cases are stated as below
The EC fan specs of model (T25GBPB) as follows
Size:Ø254*89mm
|
UFT25GBPB11H1D8A |
UFT25GBPB23H1D8A |
UFT25GBPB0AL1D8A |
|
|
Rated Voltage |
115V |
230 V |
115V~230 V |
|
Frequency |
50/60 Hz |
50/60 Hz |
50/60 Hz |
|
Input Power |
75W |
72W |
72W |
|
Rated Current |
1.05 |
0.64 |
0.35(115VAC) 0.21(230VAC) |
|
Locked Current |
0.15 |
0.15 |
0.14(115VAC) 0.16(230VAC) |
|
Speed |
2750 |
2750 |
1700 |
|
Maximum Air Flow |
23.5 |
23.5 |
14.2 |
|
Maximum Air Flow |
830 |
830 |
500 |
|
Maximum Pressure |
30.5 |
30.5 |
12.2 |
|
Maximum Pressure |
1.20 |
1.20 |
0.48 |
|
Noise |
70 |
70 |
56 |
|
Weights |
2.09 kg |
2.09 kg |
2.09 kg |
In those 30 years, Fulltech provides the best solutions to meet the high-quality requirements and specific needs for customers from different industries, Fulltech cooling fan is your best choice in the industry.
You may purchase through Fulltech authorized electronic materials distributors for AC/EC fan cooling module; or contact us via our official website for your demand.
