特殊客製化服務
特殊客製化服務
我們的服務項目包括：
- 高性能交流散熱風扇，包括軸流扇（AC Tube Axial Fan）、橫流扇（Cross Flow Fan）、外轉式轉子風扇（External Rotor Fan）、導管扇（Duct Fan）、吸頂扇（Roof Fan）；

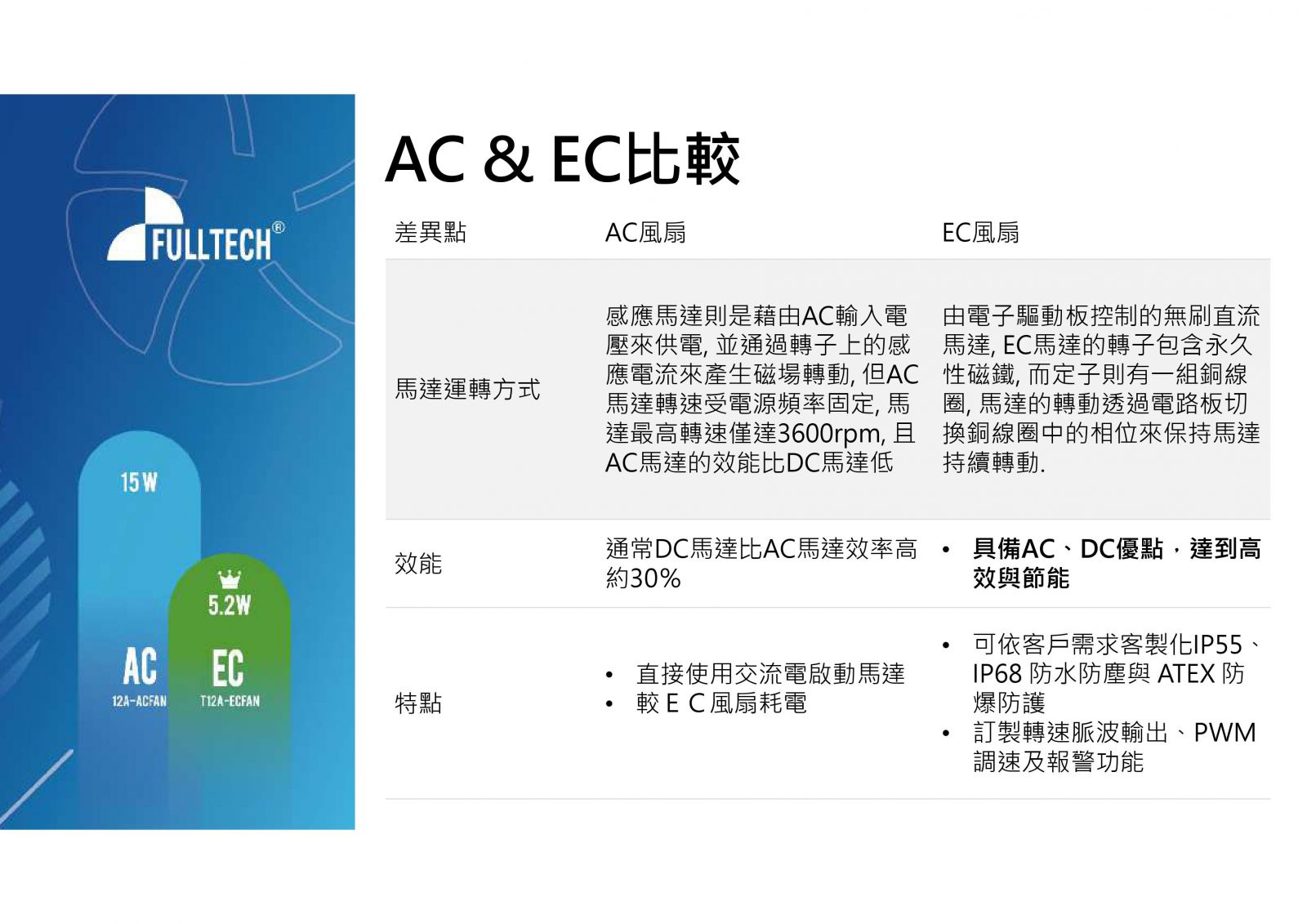

- EC高效節能風扇（Electronically Commutated fans，簡稱EC fans，或稱電子式換相風扇）。
- 客製化散熱風扇。
- 協助辦理保險、運送、海關、提示文件和品質檢驗。

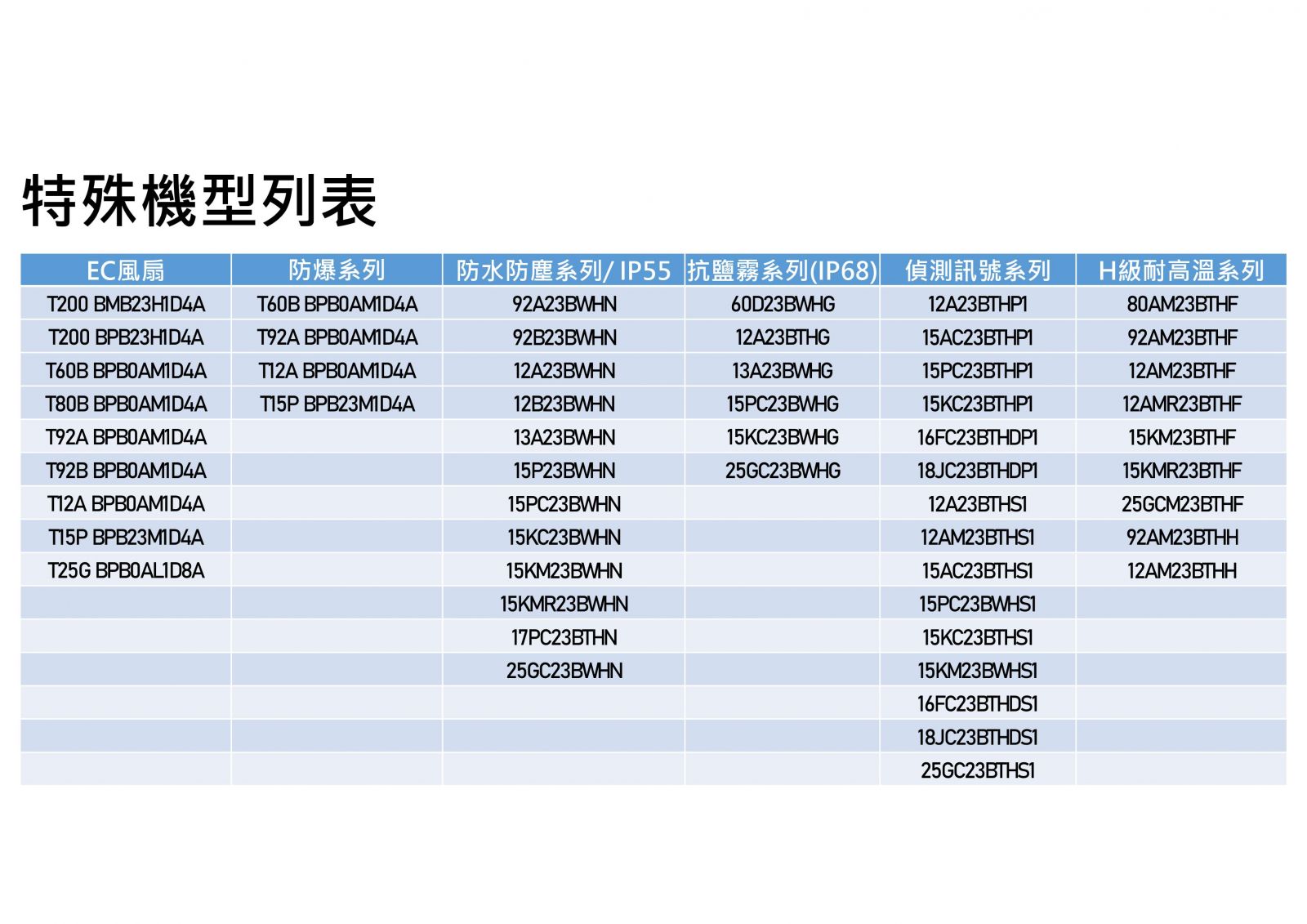

| ATEX model | Description | Size | Safety Approval |
| T60B BPB0AM1D4A | Axial fan, 230Vac, ball bearing | 60x60x25mm, plastic impeller | UL.CUL.TUV.ATEX |
| T92A BPB0AM1D4A | Axial fan, 230Vac, ball bearing | 92x92x38mm, plastic impeller | UL.CUL.TUV.CE.ATEX |
| T12A BPB0AM1D4A | Axial fan, 230Vac, ball bearing | 120x120x38mm, plastic impeller | UL.CUL.TUV.CE.ATEX |
| T15P BPB23M1D4A | Axial fan, 230Vac, ball bearing | 172x150x51mm, plastic impeller |
UL.CUL.TUV.ATEX |

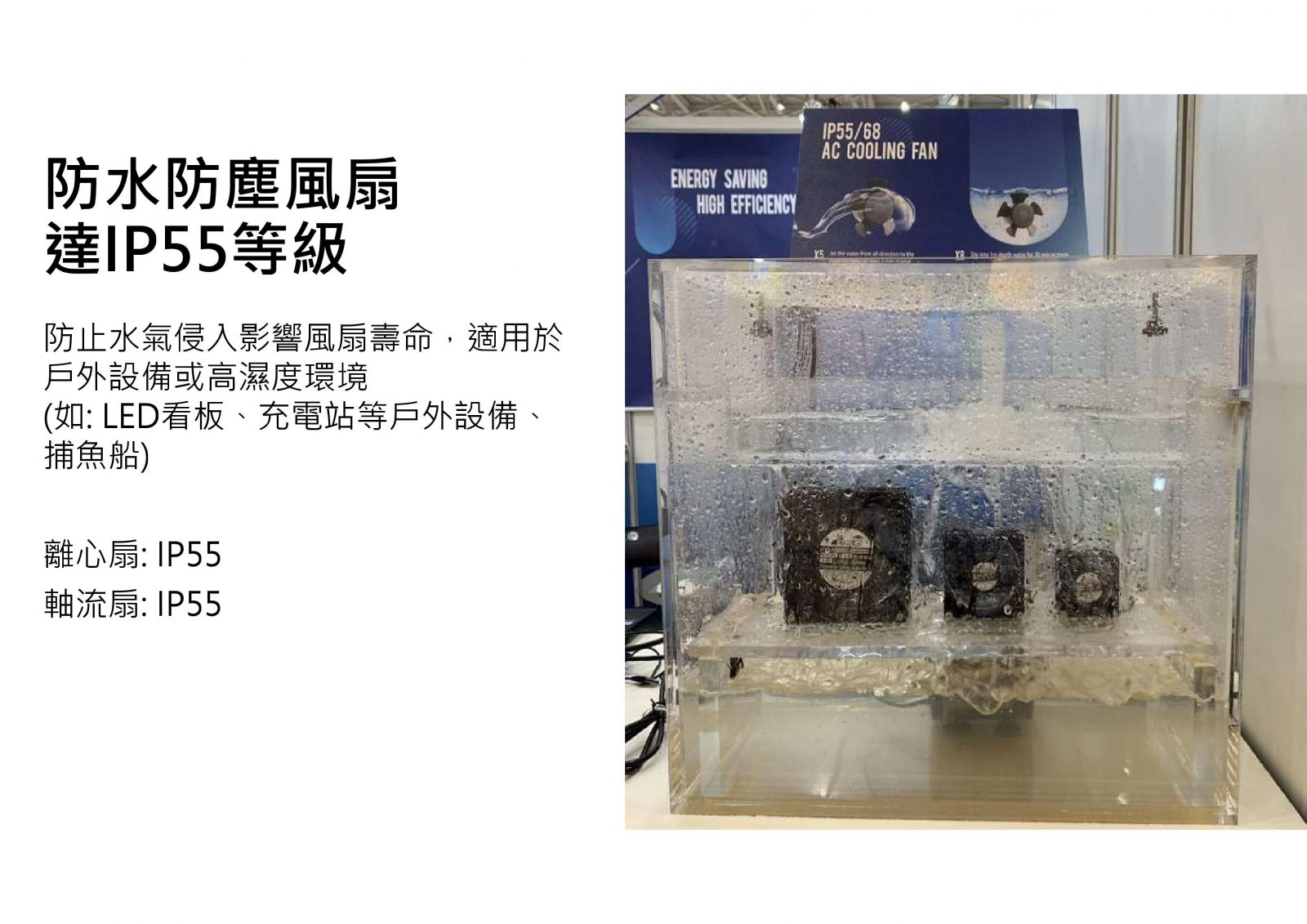

| Waterproof Model | Description | Size | Safety Approval | IP Rate |
| 92A23BWHN | Axial fan, 230Vac, ball bearing | 92x92x38mm, plastic impeller | ETL.TUV.CE | IP55 |
| 92B23BWHN | Axial fan, 230Vac, ball bearing | 92x92x25mm, plastic impeller | UL.CUL.TUV.CE | IP55 |
| 12A23BWHN | Axial fan, 230Vac, ball bearing | 120x120x38mm, plastic impeller | UL.CUL.TUV.CE | IP55 |
| 12B23BWHN | Axial fan, 230Vac, ball bearing | 120x120x25mm, plastic impeller | UL.CUL.TUV.CE | IP55 |
| 13A23BWHN | Axial fan, 230Vac, ball bearing | 127x127x38mm, plastic impeller | UL.CUL.TUV.CE | IP55 |
| 15P23BWHN | Axial fan, 230Vac, ball bearing | 172x150x51mm, plastic impeller | UL.CUL.TUV.CE | IP55 |
| 15PC23BWHN | Axial fan, 230Vac, ball bearing | 172x150x51mm, plastic impeller, capacitor start-run | UL.CUL.TUV.CE | IP55 |
| 15KC23BWHN | Axial fan, 230Vac, ball bearing | 172x150x55mm, plastic impeller | UL.CUL.TUV.CE | IP55 |
| 15KM23BWHN | Axial fan, 230Vac, ball bearing | 172x150x55mm, metal impeller | UL.CUL.TUV.CE | IP55 |
| 15KMR23BWHN | Axial fan, 230Vac, ball bearing | 172x150x55mm, metal impeller, reverse air flow | UL.CUL.TUV.CE | IP55 |
| 17PC23BTHN | Axial fan, 230Vac, ball bearing | Ø172x51mm, plastic impeller, capacitor start-run | UL.CUL.TUV.CE | IP55 |
| 25GC23BWHN | Axial fan, 230Vac, ball bearing | Ø254x89mm, plastic impeller | UL.CUL.TUV.CE | IP55 |

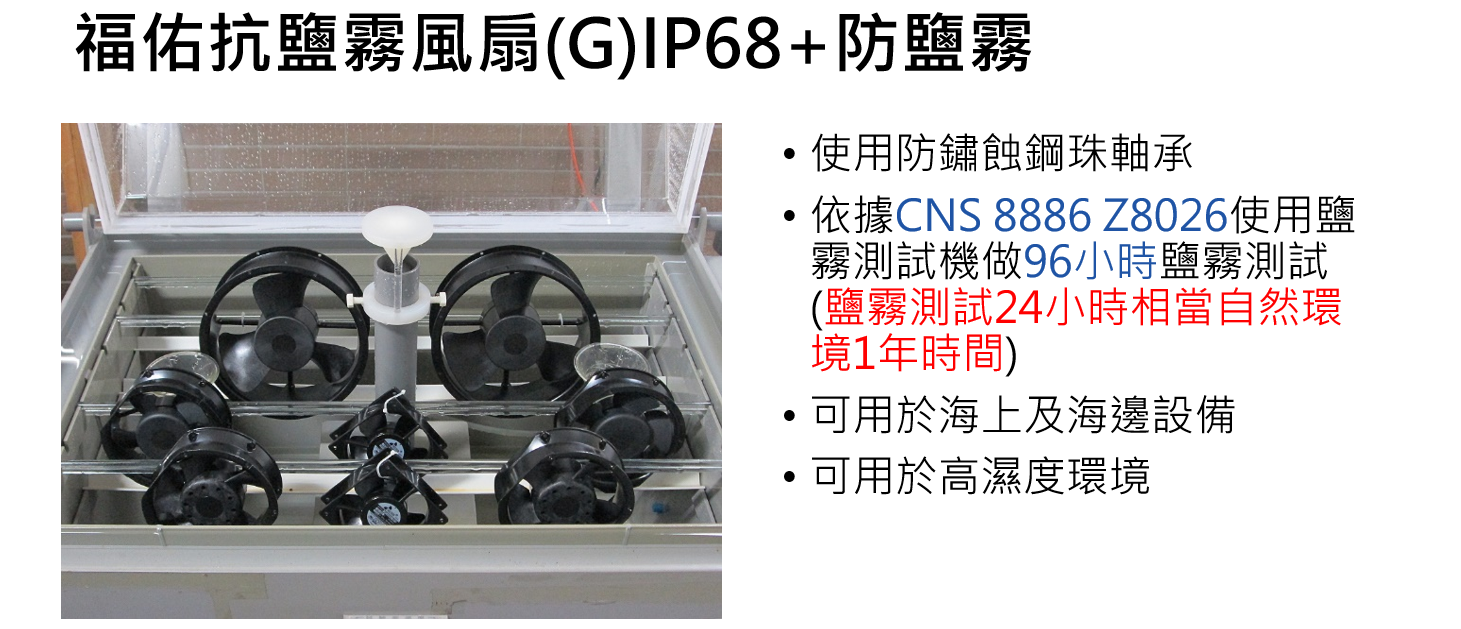

| Antirust Model | Description | Size | Safety Approval | IP Rate |
| 60D23BWHG | Axial fan, 230Vac, ball bearing | 60x60x30mm, plastic impeller | UL.CUL.TUV.CE | IP68 |
| 12A23BTHG | Axial fan, 230Vac, ball bearing | 120x120x38mm, plastic impeller | UL.CUL.TUV.CE | IP68 |
| 13A23BWHG | Axial fan, 230Vac, ball bearing | 127x127x38mm, plastic impeller | UL.CUL.TUV.CE | IP68 |
| 15PC23BWHG | Axial fan, 230Vac, ball bearing | 172x150x51mm, plastic impeller | UL.CUL.TUV.CE | IP68 |
| 15KC23BWHG | Axial fan, 230Vac, ball bearing | 172x150x55mm, plastic impeller | UL.CUL.TUV.CE | IP68 |
| 25GC23BWHG | Axial fan, 230Vac, ball bearing | Ø254x89mm, plastic impeller | UL.CUL.TUV.CE | IP68 |

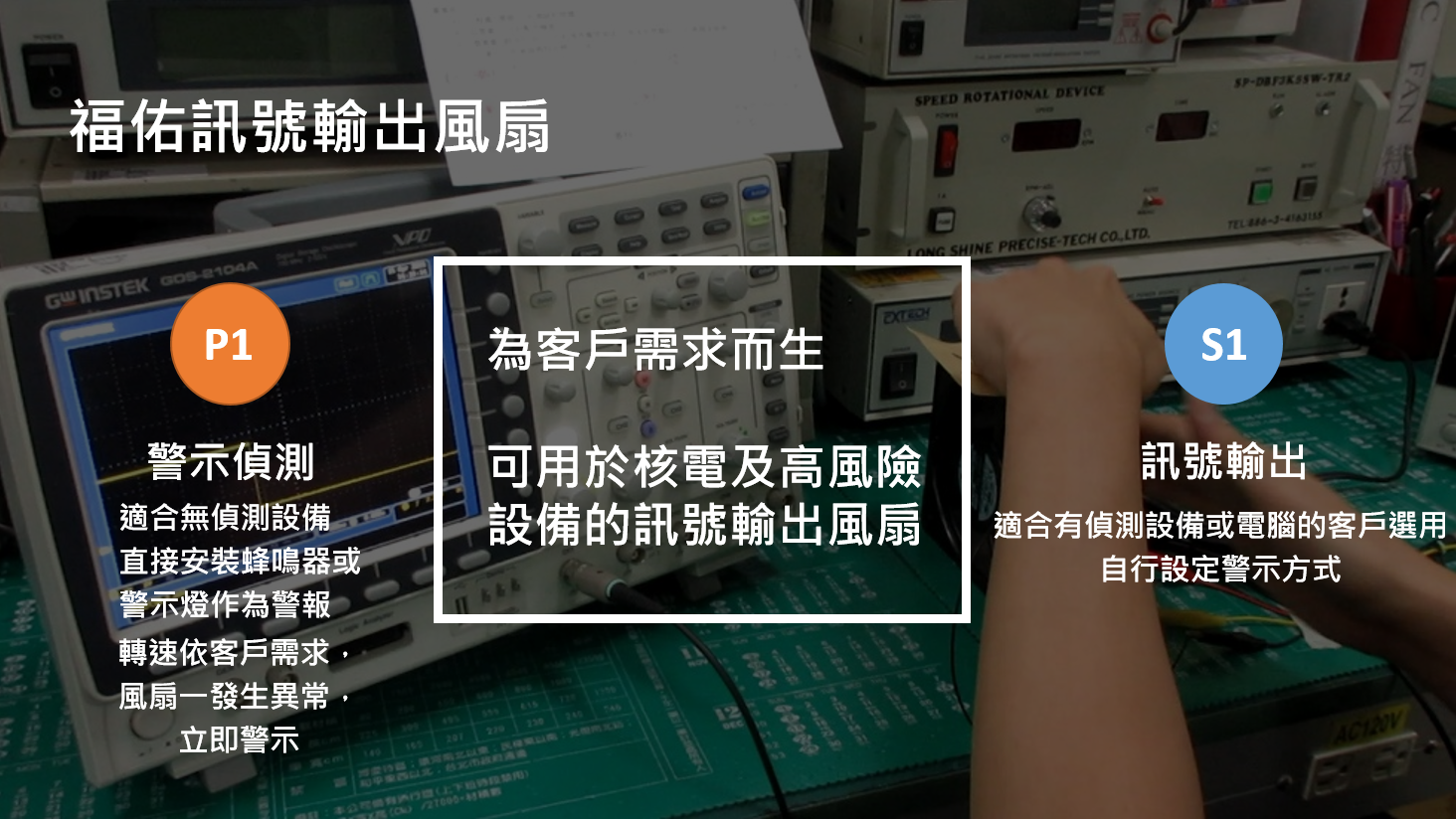

| Alarm Signal | Description | Size | Safety Approval |
| 12A23BTHP1 | Axial fan, 230Vac, ball bearing | 120x120x38mm, plastic impeller | UL.CUL.TUV.CE |
| 15AC23BTHP1 | Axial fan, 230Vac, ball bearing | 172x150x38mm, plastic impeller | UL.CUL.TUV.CE |
| 15PC23BTHP1 | Axial fan, 230Vac, ball bearing | 172x150x51mm, plastic impeller | UL.CUL.TUV.CE |
| 15KC23BTHP1 | Axial fan, 230Vac, ball bearing | 172x150x55mm, plastic impeller | UL.CUL.TUV.CE |
| 16FC23BTHDP1 | Axial fan, 230Vac, ball bearing | 160x160x62mm, plastic impeller | UL.CUL.TUV.CE |
| 18JC23BTHDP1 | Axial fan, 230Vac, ball bearing | 180x180x90mm, plastic impeller | UL.CUL.TUV.CE |
| Speed Signal | Description | Size | Safety Approval |
| 12A23BTHS1 | Axial fan, 230Vac, ball bearing | 120x120x38mm, plastic impeller | UL.CUL.TUV.CE |
| 12AM23BTHS1 | Axial fan, 230Vac, ball bearing | 120x120x38mm, metal impeller | UL.CUL.TUV.CE |
| 15AC23BTHS1 | Axial fan, 230Vac, ball bearing | 172x150x38mm, plastic impeller | UL.CUL.TUV.CE |
| 15PC23BWHS1 | Axial fan, 230Vac, ball bearing | 172x150x51mm, plastic impeller | UL.CUL.TUV.CE |
| 15KC23BTHS1 | Axial fan, 230Vac, ball bearing | 172x150x55mm, plastic impeller | UL.CUL.TUV.CE |
| 15KM23BWHS1 | Axial fan, 230Vac, ball bearing | 172x150x55mm, plastic impeller | UL.CUL.TUV.CE |
| 16FC23BTHDS1 | Axial fan, 230Vac, ball bearing | 160x160x62mm, plastic impeller | UL.CUL.TUV.CE |
| 18JC23BTHDS1 | Axial fan, 230Vac, ball bearing | 180x180x90mm, plastic impeller | UL.CUL.TUV.CE |
| 25GC23BTHS1 | Axial fan, 230Vac, ball bearing | Ø254x89mm, plastic impeller | UL.CUL.TUV.CE |

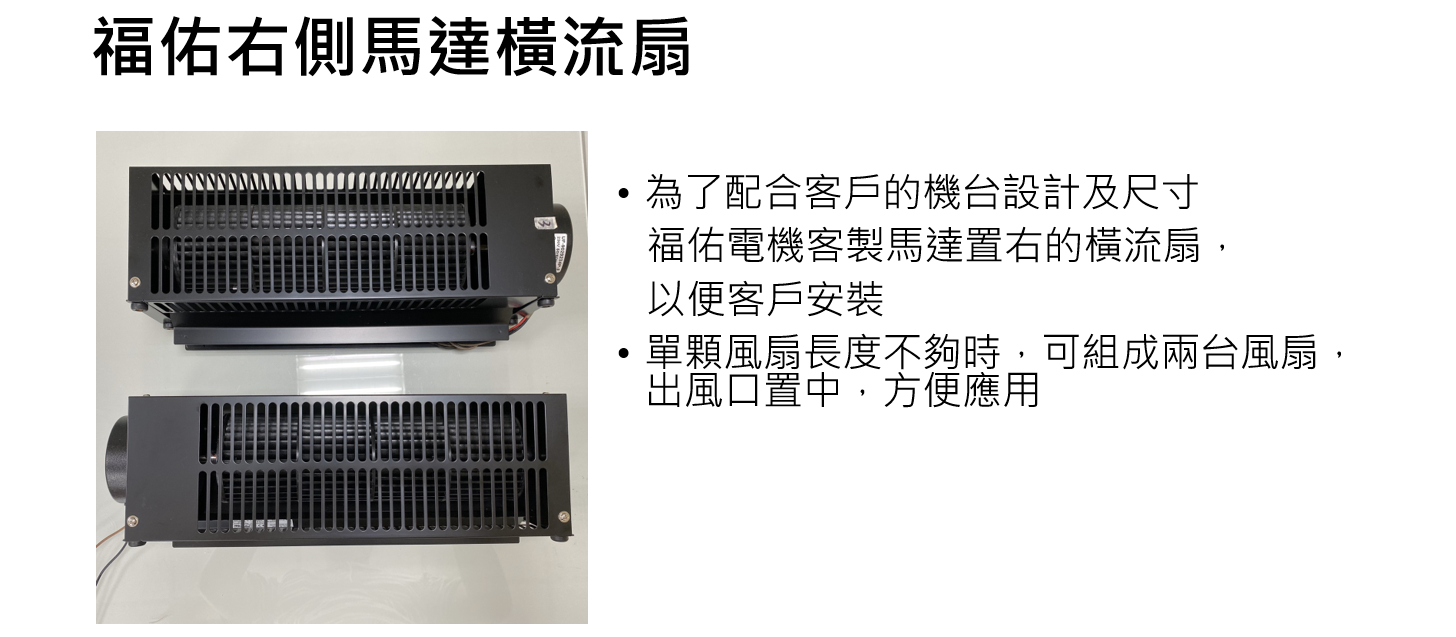

| Right Side Motor | Description | Size | Safety Approval |
| 6017SBA12MR | Cross flow fan, 120Vac, ball bearing | 266x100x90mm, aluminum roller | CE |
| 9029CBP23HR | Cross flow fan, 230Vac, ball bearing | 420x150x130mm, plastic roller | CE |
| 9060CBP23HR | Cross flow fan, 230Vac, ball bearing | 740x150x130mm, plastic roller | CE |

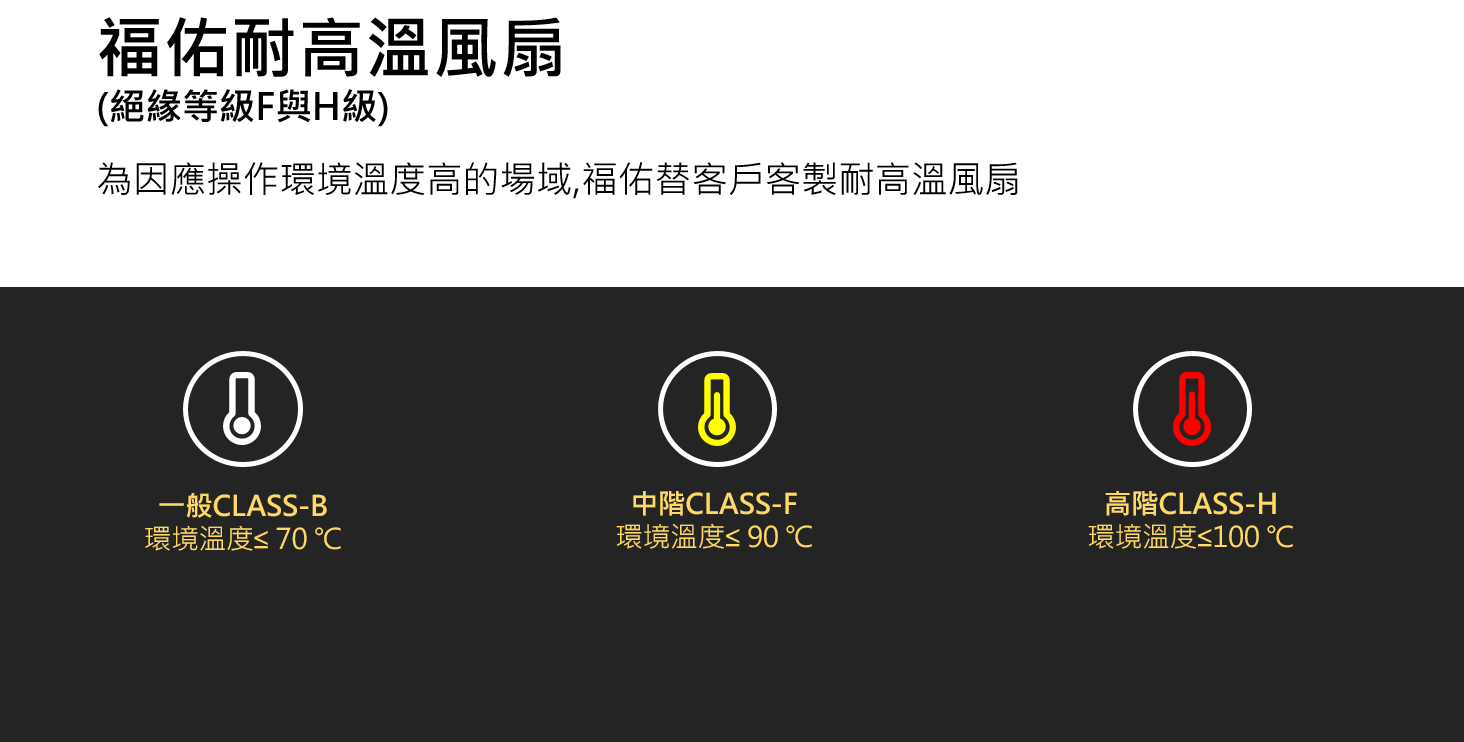

| Insluation F class-90 degree | Description | Size | Safety Approval |
| 80AM23BTHF | Axial fan, 230Vac, ball bearing | 80x80x38mm, metal impeller | UL.CUL.TUV.CE |
| 92AM23BTHF | Axial fan, 230Vac, ball bearing | 92.5x92.5x38mm, metal impeller | TUV.CE |
| 12AM23BTHF | Axial fan, 230Vac, ball bearing | 120x120x38mm, metal impeller | UL.CUL.TUV.CE |
| 12AMR23BTHF | Axial fan, 230Vac, ball bearing | 120x120x38mm, metal impeller, reverse air flow | UL.CUL.TUV.CE |
| 15KM23BTHF | Axial fan, 230Vac, ball bearing | 172x150x55mm, metal impeller | TUV.CE |
| 15KMR23BTHF | Axial fan, 230Vac, ball bearing | 172x150x55mm, metal impeller, reverse air flow | TUV.CE |
| 25GCM23BTHF | Axial fan, 230Vac, ball bearing | Ø254x89mm, metal impeller |
UL.CUL.TUV.CE |
| Insulation H Class-100 degree | Description | Size | Safety Approval |
| 92AM23BTHH | Axial fan, 230Vac, ball bearing | 92.5x92.5x38mm, metal impeller | CE |
| 12AM23BTHH | Axial fan, 230Vac, ball bearing | 120x120x38mm, metal impeller | CE |
